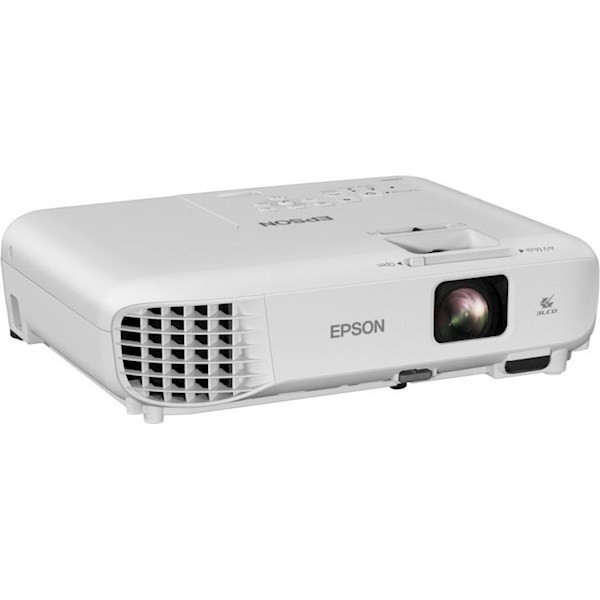

Epson EB-X500 Projector | 3600 lm | 1920 x 1080 | RCA-VGA-HDMI | V11H972140

Features

Basic properties
Category
For office and mobile presentations
For education
Projection Options
ceiling mount
reverse
frontal
Applied LCD technology:3 P-Si TFT
LCD display, inches 0.55
Native XGA resolution (1024x768)
Supported resolutions
VGA (640x480)
SVGA (800x600)
XGA(1024x768)
SXGA1 (1152x864)
WXGA(1280x800)
SXGA2 (1280x960)
SXGA3 (1280x1024)
WXGA2 (1280x768)
WXGA3 (1366x768)
WXGA+ (1440x900)
SXGA+ (1400x1050)
WXGA++ (1600x900)
UXGA (1600x1200)
480i (720x480)
576i (720x576)
480p (720x480)
576p (720x576)
720p (1280x720)
1080i (1920x1080)
1080p (1920x1080)
projection
Main aspect ratio 4:3
Image format support
16:9
16:10
Focus manual
Minimum focal length, mm 16.9
Throw ratio 1.48-1.77:1
Maximum focal length, mm 20.28
Multiplicity of change of focal length (optical) 1-1.2
Diagonal image size at minimum distance to the screen, m 0.76
Diagonal image size at maximum distance to the screen, m 7.62
Lamp
Lamp power (W UHE) 210
Lamp life (standard mode), hours 6000
Lamp resource (eco mode), hours 12000
Brightness (normal mode), lm 3600
Brightness (economical mode), lm 2400
Color brightness, lm 3600
Contrast 16000
Uniformity of brightness, % 85
Color reproduction, million colors 1.07 billion
Image Adjustment (Projector, Remote Control)
Color mode
Brightness
Contrast
Saturation
Tone
sharpness
Colorful temperature
White Balance (RGB Offset/Gain)
Noise suppression
Deinterlacing
Auto iris setting
Input signal
Signal auto tuning
Synchronization
Tracking
Position
Aspect Ratio
HDMI video range
Invisible area
keystone distortion
Vertical keystone correction, ±30 degrees
Horizontal keystone correction, ±30 degrees
DCDi by Faroudja No
Sweep frequency range
Pixel clock (minimum), MHz 13.5
Pixel clock (maximum), MHz 162
Line frequency (minimum), kHz 15
Line frequency (maximum), kHz 92
Frame rate (minimum), Hz 50
Frame rate (maximum), Hz 85
Inputs
VGA (Mini D-Sub 15-pin) Yes
Number of VGA inputs 1
Composite video input (RCA) Yes
Number of composite video inputs (RCA) 1
Component Video Input (RCA) No
Component Video Input (BNC x5) No
Composite Video Input (BNC) No
S-Video (Mini DIN 4-pin) No
HDMI Yes
Number of HDMI inputs 1
Audio Input (Mini Jack 3.5mm) No
Audio Input (RCA White/Red) Yes
Number of audio inputs (RCA White/Red) 1
Remote Control (Mini Jack 3.5 mm) No
Microphone (Mini Jack 3.5mm) No
Interactive Sync In Port (Mini Jack) No
DVI-D (Input) No
Outputs
VGA (Mini D-Sub 15-pin) No
DVI-D (Output) No
HDMI (Output) No
Audio Output (Mini Jack 3.5mm) No
Number of audio outputs (Mini Jack 3.5 mm) No
Trigger out No
Interactive Sync Out Port (Mini Jack) No
Interfaces
USB (Type A) Yes
Number of USB Type A interfaces 1
USB (Type B) Yes
Number of USB type B interfaces 1
Ethernet No
Display port No
HD-BaseT No
Wi-Fi is (optional)
Wi-Fi Miracast/ Intel WiDi No
Bluetooth Audio No
MHL No
Serial digital interface RS-232 (D-Sub 9-pin) No
HD-SDI Serial Digital Interface (BNC) No
External 3D IR Port (RJ45) No
SD Memory Card Support No
Compact Flash Card Support No
Working conditions
Minimum operating temperature, °C 5
Maximum operating temperature, °C 35
Voltage 100-240 V ±10%, 50/60 Hz
Fan noise (eco mode), dB 28
Functions
4K Enhancement No
Android TV No
Edge Blending No
Gesture Presenter No
HDR No
Multi Screen No
Multi-location No
Quick Corner Yes
Split Screen No
Super Resolution No
USB Display 2 in 1 No
USB Display 3 in 1 Yes
Whiteboard Sharing No
Automatic calibration of the interactive function No
Auto Keystone Correction Yes
Auto Color Mode No
Without control keys on the case No
Quick Start Yes
Ability to use up to two interactive styluses at the same time No
Ability to use interactive features without a PC No
Ability to convert 2D to 3D No
Table projection capability No
Built-in speaker, mono Yes
Built-in speaker, stereo No
Apple Dock No
Dust protection No
Interactive Features No
Frame Interpolation No
Karaoke No
Instant Off Yes
Network monitoring and control Yes
Built-in speaker power, W 2
Multi-Screen Interactive No
3D Format Support No
Microphone connection No
Wi-Fi connection available (optional)
View PDF files from USB drives No
USB Video Playback Yes
Viewing images from USB storage devices Yes
Viewing Images from Compact Flash Cards No
Viewing images from SD memory cards No
Viewing presentations from USB drives No
Direct plug
Package include
Projector
Power cable 1.8 m
Cable for connecting to a PC with a 15-pin D-Sub (n/n) connector 1.8m
Remote control
User's manual
